MK Circuit
Node Data | |
|---|---|
 | |
Display name | |
MK Circuit | |
Internal name | |
Node_MK_Circuit | |
Inheritances | |
| Node_Processor | |
| Node_MK_Circuit | |
Inputs | |
Output | |
vec2 |
Dimension |
surface |
Mask |
Circuit | |
ivec2 |
Cell Count |
vec2 |
Clamp Distance |
bool |
Diagonal |
bool |
Round Corner |
slider |
Trim |
Rendering | |
surface |
Bg Surface |
color |
Bg Color |
float |
Wire Thickness |
gradient |
Base Color |
gradient |
Length Color |
Connection | |
bool |
Connection |
enum |
Shape |
float |
Radius |
bool |
Filled |
Rendering | |
float |
Thickness |
surface |
Surface |
enum |
Blend Wire |
color |
Color Start |
color |
Color End |
Algorithm | |
int |
Max Attempt |
Outputs | |
surface |
Surface Out |

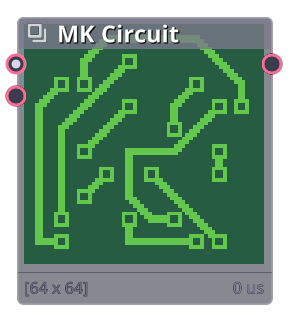

Generate a PCB trace using path finding.
Properties
| Circuit | |
| Cell Count | The amount of grid for path finding. |
| Clamp Distance | Limit maximum distance of the trace. |
| Diagonal | Allow diagonal connection. |
| Round Corner | Round out trace corner. |
| Trim | Trim connection, used for animation. |
| Connection | |
| Connection | Draw connection terminal. |
| Shape | Connection shape. |
| Radius | Connection size. |
| Filled | (for non surface shape) Whether to draw filled shape or just the outline. |
| Algorithm | |
| Max Attempt | Maximum path finding attemp before giving up. |
Commit History
| 1.20.8 |
|
|---|---|
| 1.21.8.001 |
|
| 1.21.7.104 |
|
Related Links
- Base Code: /scripts/node_mk_circuit/node_mk_circuit.gml
